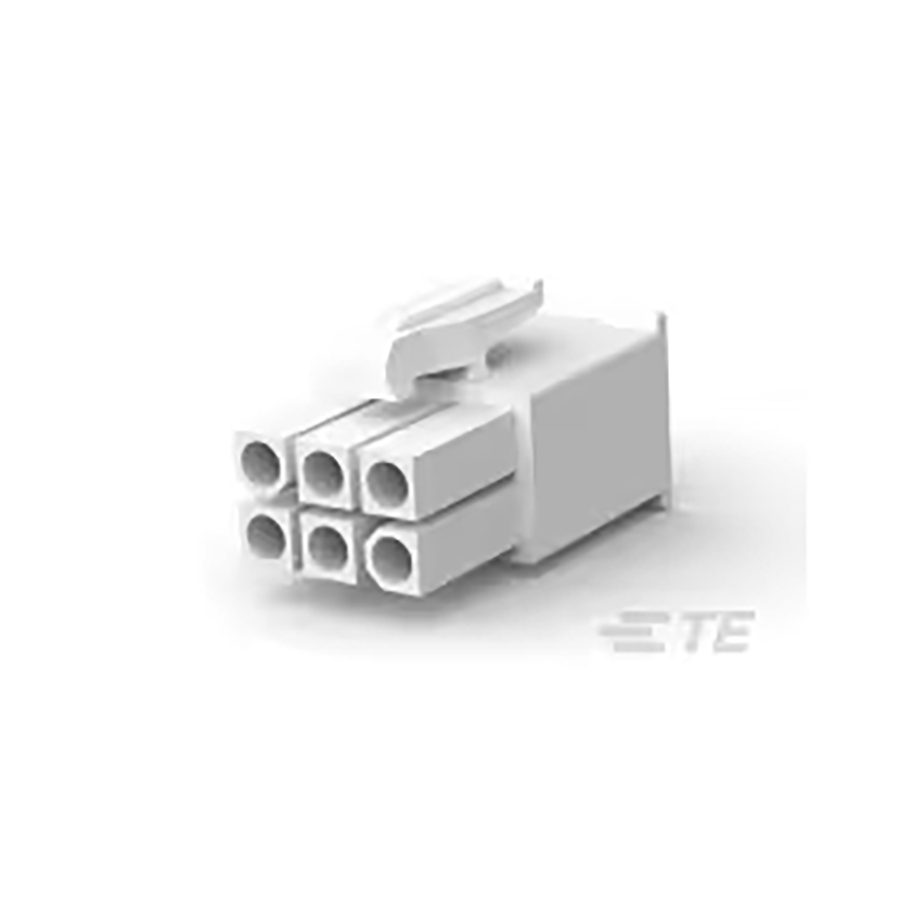

172339-1
Manufacturer:
TE Connectivity
Mfr.Part #:
172339-1
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Socket Number of Positions:6 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 6 |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 23.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| REACH SVHC | No SVHC |
| Pitch | 4.2 mm |
| Current Rating | 9.5 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 6 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 162 µm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Natural |
| Contact Gender | Male |
| Number of Power Positions | 0 |
| VDE Tested | Yes |
| Number of Signal Positions | 0 |
| Shell Material | Polyamide |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 4838
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.30350 | $3.03500 |
| 25 | $0.27956 | $6.98900 |
| 50 | $0.27395 | $13.69750 |
| 100 | $0.26845 | $26.84500 |
| 300 | $0.25273 | $75.81900 |
| 500 | $0.23793 | $118.96500 |
| 1000 | $0.22399 | $223.99000 |
| 3000 | $0.20938 | $628.14000 |
| 5000 | $0.19572 | $978.60000 |
| 10000 | $0.18296 | $1829.60000 |
